OPS Scoreboard Storage and Operation

Location / Storage:

• The score controller is stored in the grey wall box next to the scorers table in a black protective bag
• It must be placed back in the bag and stored in the grey box at the end of each day
• A backup table top scoreboard will be in the MPR closet, and you can ask the custodian for access if needed

Turning On:

1. Turn on the electric breaker #5. MUST TURN THIS OFF WHEN FINISHED WITH GAMES
2. Plug in All Cords and Power On - cable out from controller goes into cable port under grey box
3. Press Set Clock
   • Up/Down Arrow to select 8 or 10 min and press Enter
   • Or press Enter on “Ent Game Time”, enter time and press Enter

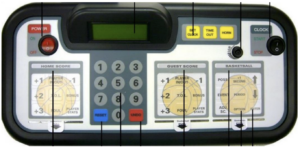

Key buttons:

• Clock: Start / Stop
• Home or Guest Score: +1, +2, +3 OR -1 to remove score
• Period: located on bottom right side
• Horn: top right
• Poss.: if you are keeping the possession arrow

Clean up process:

1. Last game of the day MUST store in black bag and place in grey wall box by score table
   • Completely remove AC Adaptor
   • Leave communication cable attached to scoreboard and wrap around
2. Turn off electric breaker #5
